Figure 8 Aerial Fiber Optics Cable
Application
Primarily for carrier-class fixed line, mobile communications networks, CATV fiber-optic backbone network, used for the core and aggregation network and access network for base stations connected. Figure 8 Aerial Self Support cables are designed suitably for Outdoor UV/harsh outdoor environment protection between buildings short, medium span aerial installations.

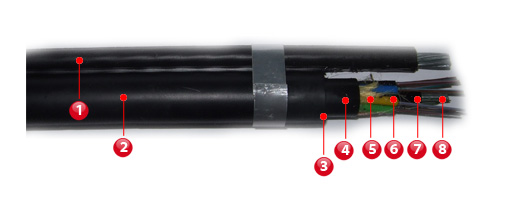

Construction
Figure 8 Aerial Fiber Optics Cable
1Self-support wire with oversheath
2Outer sheath
3Ripcord & water blocking element
4Peripheral strength element-Aramid yarn
5Peripheral strength element-Aramid yarn
6Loose tube
7Colour fibers
8Center strength member(CSM)- Galvanized steel wire with oversheath
Property
- CSM: Galvanized steel wire with oversheath could provide efficient tension for cable.
- Loose Tube: 6 or 12 fibers per PBT loose tube and filled with a suitable jelly compound.
- Filler:Thermoplastic rods, where needed.
- Stranding:Loose tubes (and filler), SZ stranded around the CSM.
- Stranding:Loose tubes (and filler), SZ stranded around the CSM.
- Longitudinal water tightness : The core is water blocking by using petroleum jelly.
- Peripheral Strength Element: Aramid yarns.
- Inner Sheath: Only for double sheath. (Option)
- Water Blocking Element:Only for double sheath, between inner sheath and out sheath .(Option)
- Ripcord:Nylon thread or Aramid yarn for easily stripping of the sheath.
- Outer Sheath: (Option)
LAP sheath: Laminated Aluminum sheath for moisture barrier.
Black polyethylene sheath
Specification
6C~96C，Detail specification as following :
Construction
| No. of Fibers | Unit | 6 | 12 | 18 | 24 | 36 | 48 | 72 | 96 |
|---|---|---|---|---|---|---|---|---|---|
| Tubes ×Fibers | NO.×C | 1×6 | 2×6 | 3×6 | 4×6 | 6×6 | 8×6 | 6×12 | 8×12 |
| Loose Tube/Filler diameter | mm | 2.5 | 3.1 | ||||||
| CSM diameter | mm | 2.0 | 2.3 | 2.6 | |||||
| CSM over sheath diameter | mm | 2.7 | 4.2 | 3.3 | 5.5 | ||||
| Inner sheath thickness | mm | 1.0 | |||||||
| LAP outer sheath thickness | mm | 1.7 | |||||||
| Cable Diameter | NO/mm | 7/1.8 | 7/2.0 | ||||||
| Cable Diameter | mm | 14.8 | 16.3 | 17.0 | 20.5 | ||||
| Cable Diameter (H×W) | mm | 24.2×14.8 | 25.7×16.3 | 24.1×17.1 | 30.5×20.5 | ||||
| Cable weight(App.) | kg/m | 0.35 | 0.38 | 0.39 | 0.43 | ||||
Application
| Temperature Range | Minimum Bending Radius |
|---|---|
| Transportation&Storage: -30~+60℃ Installation: 0~+60℃ Operation: -30~+60℃ |
Under Maximum Tension : 20×Cable diameter Without Tension: 10×Cable diameter |
Mechanical and Environmental Characteristics：
| Test | Test Standard | Specified Value | Acceptance Criteria |
|---|---|---|---|
| Tensile Loading and Bending Test | EIA-455-33A | Mandrel diameter: 20D (D = cable diameter) for 150m length Tensile load: 273kgf for 10 minutes |
(1) Attenuation Increment≦ 0.2 dB (2) No jacket cracking and fiber breakage |
| Cyclic Flexing Test | TIA/EIA-455-104A | Sheave diameter:20D (D=cable diameter) No. of flexing cycles: 25 cycles Flexing speed: 30 cycles/minute Flexing angle: 90°/cycle |
|
| Repeated Impact Test | TIA/EIA-455-25B | No. of impact cycles: 20 cycles Cycle speed:30±1 cycles／min. |
|
| Cable Twist Test | TIA/EIA-455-85A | Cable length twisted: 4m No. of twist cycles: 10 cycles for 10 min. Twist angle: ±180°/cycle |
|
| Pinch resistance | TIA/EIA-455-41A | Applied load: 4.54kgf/mm Duration of loading: 10 minutes Load length: more than 100 mm Compressive speed: 2.54 mm/min. |
|
| Water Penetration | TIA/EIA-455-82B/ IEC 60794-1-2F5B | Length of specimen: 1m Height of pressure head: 1m Test time: 4 hours |
No leakage through the open end of cable |
This section shall be performed at 1550nm wavelength.
Optical Characteristics
| 4.1 Maximum Attenuation | |
|---|---|
| Wavelength | Attenuation(dB/km) |
| 1260nm | ≦ 0.45 |
| 1310nm | ≦ 0.40 |
| 1383nm±3nm | ≦ 0.35 |
| 1550nm | ≦ 0.25 (90%) ≦ 0.30 (100%) |
| 1625nm | ≦ 0.35 |
| 4.2 Chromatic Dispersion | |
|---|---|
| Wavelength | Specification (ps/km-nm) |
| 1260nm | ≦ 6.21 |
| 1310nm | ≦ 1.14 |
| 1383nm | ≦ 7.05 |
| 1550nm | ≦ 18.21 |
| 1625nm | ≦ 22.31 |
| 4.3 Polarization Mode Dispersion , PMD | |
|---|---|
| Individual Polarization Mode Dispersion | 0.2 ps /√km |
| Linked Polarization Mode Dispersion，PMDQ 20 Cables(M＝20) 0.01% Probability level(Q＝0.01%) |
0.1ps /√km |
| 4.4 Cut-off Wavelength of Cabled：Less than 1260nm. |
|---|
| 4.5 Mode Field Diameter | |
|---|---|
| 1310nm | 9.0～9.4μｍ±0.4μｍ |
| 1550nm | 10.0～10.7μｍ±0.7μｍ |
Identification
| 5.1 Fiber Colors | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiber No | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Bule | Yellow | Green | Red | Violet | White | Brown | Black | Aqua | Orange | Pink | Gray |
| 5.2 Loose Tube Colors | ||||||||
|---|---|---|---|---|---|---|---|---|
| Tube No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Color | Bule | Yellow | Green | Red | Violet | White | Brown | Black |
| 5.3 Sheath Color: Black |
|---|
| 5.4 Sheath Marking |
|---|
| PACIFIC 《year of manufacture》《Cable type and fiber count》《length marking in meter》 |
Packing
Metal or Wooden drums with protection.
Delivery Lengths
Standard delivery length is 2000 meters.
