LAN Cable
Application
Applied to digital data network, such as token ring network, Ethernet or FDDI, etc.
Category 6Cable
Application
Cable is suitable for the transmission of analong voice and digital data of 1Gbps and cable should comply electrical performance of frequency up to 250MHz.For example, T1, ISDN, 10BASE-T (IEEE 802.3), 100BASE-T (IEEE 802.3), Fast Ethernet, 100VG –any LAN (IEEE 802.12), 155/622 Mbps ATM, 550MHz Broadband Vedio, 100BASE-T Gigabit Ethernet network.
Construction

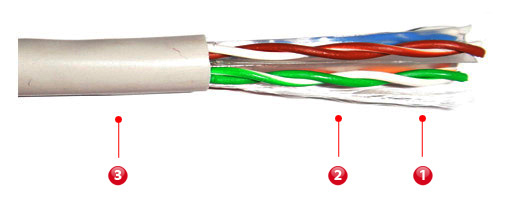

Category 6 UTP
1Conductor - Solid annealed copper wire
Insulation - Polyethylene
Insulation - Polyethylene
2Rip-cord - Nylon thread
3Sheath: Polyethylene, PVC or Low smoke free halogen compound.

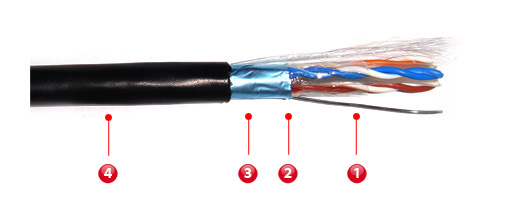

Category 6 FTP
1Cable core stranding Conductor: Solid annealed copper. Insulation: Polyethylene Crosser Filler: Polyethylene
2Shield: Mylar tape, Drain wire, Polyester aluminum foil
3Rip-cord - Nylon thread
4Sheath: Polyethylene, PVC or Low smoke free halogen compound.
Property
- This cable is used for transmission of analog voice and digital data of 1Gbps.
- Flame retardant grade: UL Type CM, Type CMR, Type CMP
- Pairs: 4P
- Temperature and voltage: UL 75℃ , 300V
Specification
Category 6 UTP & FTP
| Cat. | Pair (P) | onductor diameter nom. (mm) | Overall diameter approx. (mm) | Conductor resistance unbalance max.(%) | Test frequence (MHz) | Attenuation Max. (dB/100M) | Return loss Min. (dB) | |
|---|---|---|---|---|---|---|---|---|
| UTP | FTP | |||||||
| 6 (UTP) |
4 | 0.56 | 6.3 | 5 | 1 | 2 | 2.8 | 20.0 |
| 4 | 3.8 | 6.5 | 23.0 | |||||
| 8 | 5.3 | 7.4 | 24.5 | |||||
| 10 | 6.0 | 6.5 | 25.0 | |||||
| 16 | 7.6 | 8.0 | 25.0 | |||||
| 20 | 8.5 | 8.5 | 25.0 | |||||
| 6 (FTP) |
4 | 0.58 | 7.7 | 25 | 9.5 | 9.5 | 24.3 | |
| 31.25 | 10.7 | 10.7 | 23.6 | |||||
| 62.5 | 15.4 | 15.4 | 21.5 | |||||
| 100 | 19.8 | 19.8 | 20.1 | |||||
| 200 | 29.0 | 29.0 | 18.0 | |||||
| 250 | 32.8 | 32.8 | 17.3 | |||||
| Cat. | Test frequence (MHz) | Near-end crosstalk Min. (dB) | Power-sum Near-end crosstalk min. (dB) | Far-end Crosstalk Min. (dB) | Power-sum Near-end Min. (dB) | Transverse Conversation loss (dB) | Equal level Transverse Conversation loss Min. (dB) | Delay skew Max. (ns/100M) | Propagation delay Max. (ns/100M) |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 1 | 74.3 | 72.3 | 67.8 | 64.8 | 40 | 35 | 45 | 570 |
| 4 | 65.3 | 63.3 | 55.8 | 52.8 | 40 | 23 | 45 | 552 | |
| 8 | 60.8 | 58.8 | 49.7 | 46.7 | 40 | 16.9 | 45 | 547 | |
| 10 | 59.3 | 57.3 | 47.8 | 44.8 | 40 | 15.0 | 45 | 545 | |
| 16 | 56.2 | 54.2 | 43.7 | 40.7 | 38 | 10.9 | 45 | 543 | |
| 20 | 54.8 | 52.8 | 41.8 | 38.8 | 37 | 9.0 | 45 | 542 | |
| 25 | 53.3 | 51.3 | 39.8 | 36.8 | 36 | 7.0 | 45 | 541 | |
| 30 | -- | -- | -- | -- | -- | 5.5 | -- | -- | |
| 31.25 | 51.9 | 49.9 | 37.9 | 34.9 | 35.1 | -- | 45 | 540 | |
| 62.5 | 47.4 | 45.4 | 31.9 | 28.9 | 32 | -- | 45 | 539 | |
| 100 | 44.3 | 42.3 | 27.8 | 24.8 | 30 | -- | 45 | 538 | |
| 200 | 39.8 | 37.8 | 21.8 | 18.8 | 27 | -- | 45 | 537 | |
| 250 | 38.3 | 36.3 | 19.8 | 16.8 | 26 | -- | 45 | 536 |
